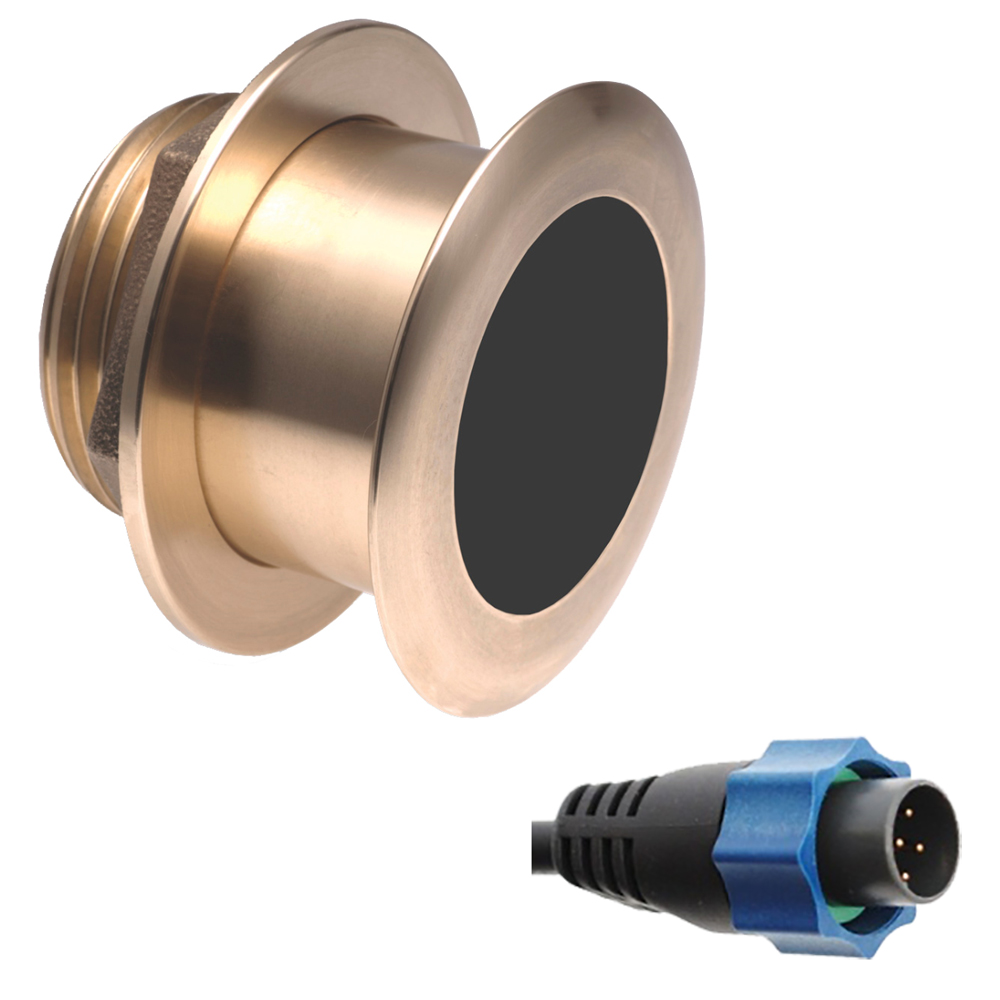

Airmar B164 1kW 0° Thru-Hull Transducer for Simrad w/Blue Connector

B164 1kW 0° Thru-Hull Transducer with Blue Connector

The B164 is a 1kW bronze low-profile transducer with a fast-response temperature sensor. The transducer is ideal for fast, trailered, tournament, sport-fishing boats that cannot install an external fairing. This version has a zero degree tilt for hull deadrise angles of 0-7 degrees.

The BL (Blue Connector) version of the B164 transducer is for Lowrance fishfinders and sounders that use the standard Lowrance 7-pin blue connector. This includes the Lowrance HDS series and many other current and discontinued Lowrance units. The B164 BL version is also for the Simrad NSE series.

Features:

• Power output 1000W

• 3.875" hole size (98mm)

• Beam 22 x 20° at 50kHz, 6 x 6° at 200kHz

• Maximum depth 1200-1800 ft @ 50kHz

• Maximum depth 500-800 ft @ 200kHz

Specifications:

• Mounting Style: Thru-Hull
• Box Dimensions: 8"H x 10"W x 12"L WT: 10.6 lbs
