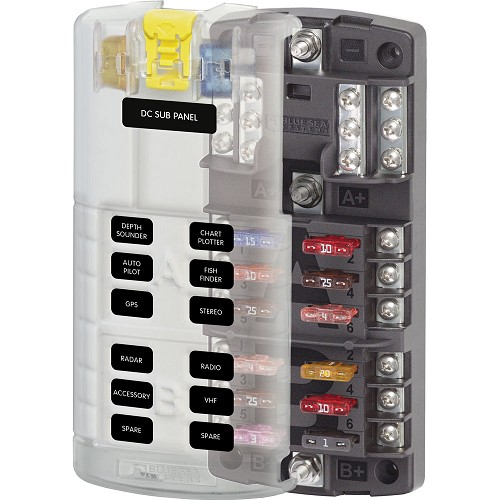

Blue Sea 5032 ST-Blade Split Bus Fuse Block

ST-Blade Split Bus Fuse Block

Features:

• Provides two isolated groups of six ATO/ATC circuits

• For use with either two isolated batteries or with a single battery providing a mix of 24 hour and switched circuits

• Screw terminals for securing wires accept ring terminals

• One-piece stainless flange nuts ensure safe and secure connections

• Clear insulating cover with label recesses and storage for two fuses, satisfies ABYC/USCG insulation requirements

• Easy to open, push button latch for easy access to fuses

• Tin-plated copper buses and fuse clips

• Fuses sold separately

• Circuits: 12

• Maximum Amperage: 100A per block, 30A per circuit

• Maximum Voltage: 32V DC

• Mounting: #8 Screw (M4)

• Negative Bus: #10-32 Stud

• Screw Terminal Type: #8-32 Screws with captive star lock washer

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Fuse Type: ATO/ATC
• Type: Fuse Blocks
• Box Dimensions: 2"H x 6"W x 10"L WT: 0.9 lbs
• UPC: 632085050320
