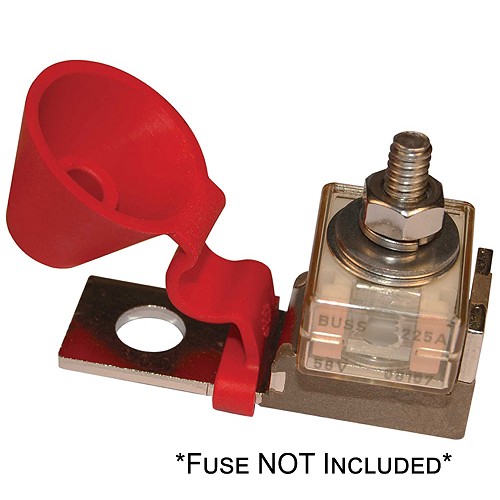

Blue Sea 5191 Terminal Fuse Block 30-300AMP

Terminal Fuse Black

• New isolated stud design uses standard 5/16" hardware and permits stacking of terminals
• Compact, high-amp fuse-Appropriate for DC Main, inverter, windlass, and bow thruster circuit protection
• Provides high current protection in tight space constraints
• Weatherproof-suitable for small open-cockpit boats and other harsh environments
• Insulating cap prevents accidental shorts
• Use 5/16" or 3/8" ring terminal

Specifications

• Ignition Protected: No
• Maximum Amperage: 300a
• Maximum Voltage: 58v DC
• Terminal Stud: M8 (5/16")
• Maximum Torque: 75 in-lb

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Specifications:

• Fuse Type: Terminal
• Type: Fuse Blocks
• Box Dimensions: 1"H x 4"W x 6"L WT: 0.5 lbs
• UPC: 632085051914
