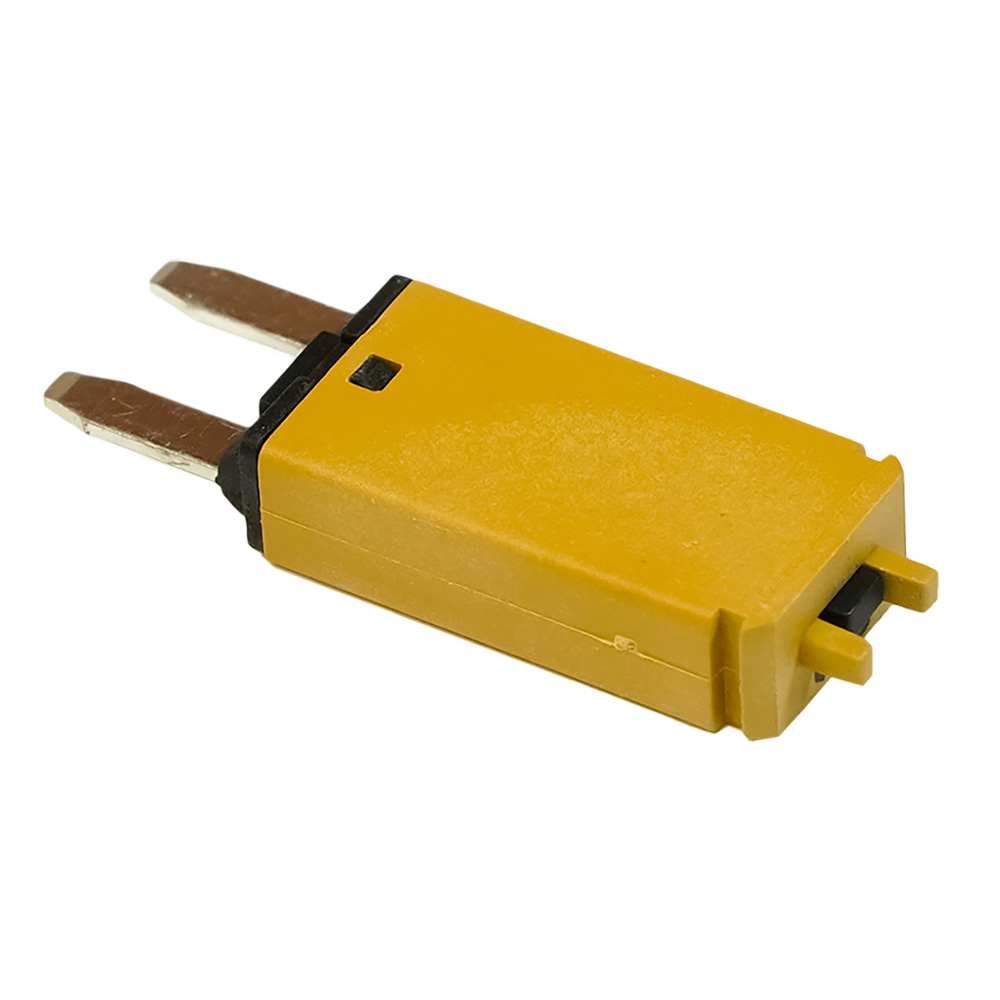

Egis ATM/MINI 5 AMP Circuit Breaker - Type 3

ATM/MINI 5 AMP Circuit Breaker - Type 3

Features:

• Extremely Compact Circuit Breakers significantly reduce the space required to implement resettable circuit protection in mobile electrical systems.
• 32 Max VDC Rating easily supports 12- and 24-VDC systems.
• Manual push-to-reset Type 3 operation allows simple re-closing of the circuit breaker after any potential fault situations are investigated and cleared.
• Color-coded enclosure variations, depending on continuous current, help reduce installation errors and ensure correct replacements.
• Harsh Environment design with high temperature materials and tin-plated copper alloy conductors.
• Supports ABYC Compliant Systems when wire sizes are reduced for branch circuit distribution.

Specifications:

• Amperage: 5a
• Box Dimensions: 2"H x 2"W x 4"L WT: 0.1 lbs
• UPC: 850053879791
