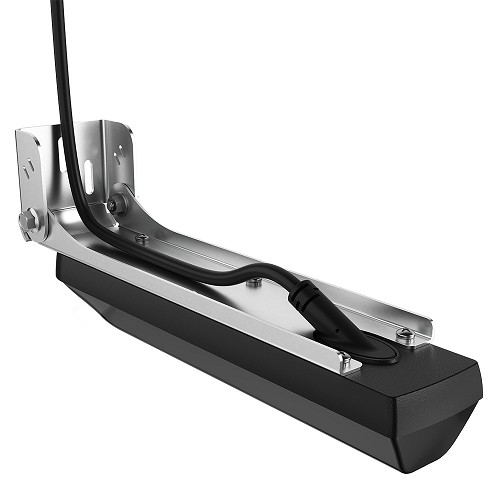

Lowrance Active Imaging HD™ 3-in-1 Transducer

Active Imaging HD™ 3-in-1 Transducer

Step up to the ultimate fishfinding clarity with new, high-definition Active Imaging™ HD 3-in-1 sonar. Get the most precise images of fish and structure from Lowrance® CHIRP sonar, high-frequency (up to 1.2MHz) SideScan, and DownScan Imaging™, plus a FishReveal™ DownScan view that makes fish easier to identify below the boat.

Features:

• High definition (up to 1.2MHz) SideScan and DownScan Imaging™ deliver the clearest images of fish and structure
• Lowrance® CHIRP with superb clarity and target separation
• FishReveal™ DownScan view makes fish identification easy
• Supports Medium and High CHIRP (83/200kHz) + 455/800kHz and 455/1.2MHz frequencies
• Smart transducer design boosts signal clarity
• Compatible directly with Lowrance HDS PRO or with an S3100 module with HDS LIVE, HDS Carbon, and Elite FS

Specifications:

• Cable Length (Feet): 25'
• Chirp: Medium/High
• Imaging: Standard/Down/Side
• Mounting Style: Transom
• Pins: 9
• Speed Included: No
• Temperature: Yes
• Box Dimensions: 4"H x 10"W x 14"L WT: 4.4 lbs
• UPC: 9420064130368
