Lowrance Fuel Flow Sensor w/10' Cable & T-Connector

0 Review(s) Write a Review
Your Price: $239.99
Model Number:
000-11517-001
Availability:
In Stock
Brand:
Lowrance
Lowrance Fuel Flow Sensor w/10' Cable & T-Connector
Model #: 000-11517-001
Oversized: 0
Truck: 0

Add Accessories

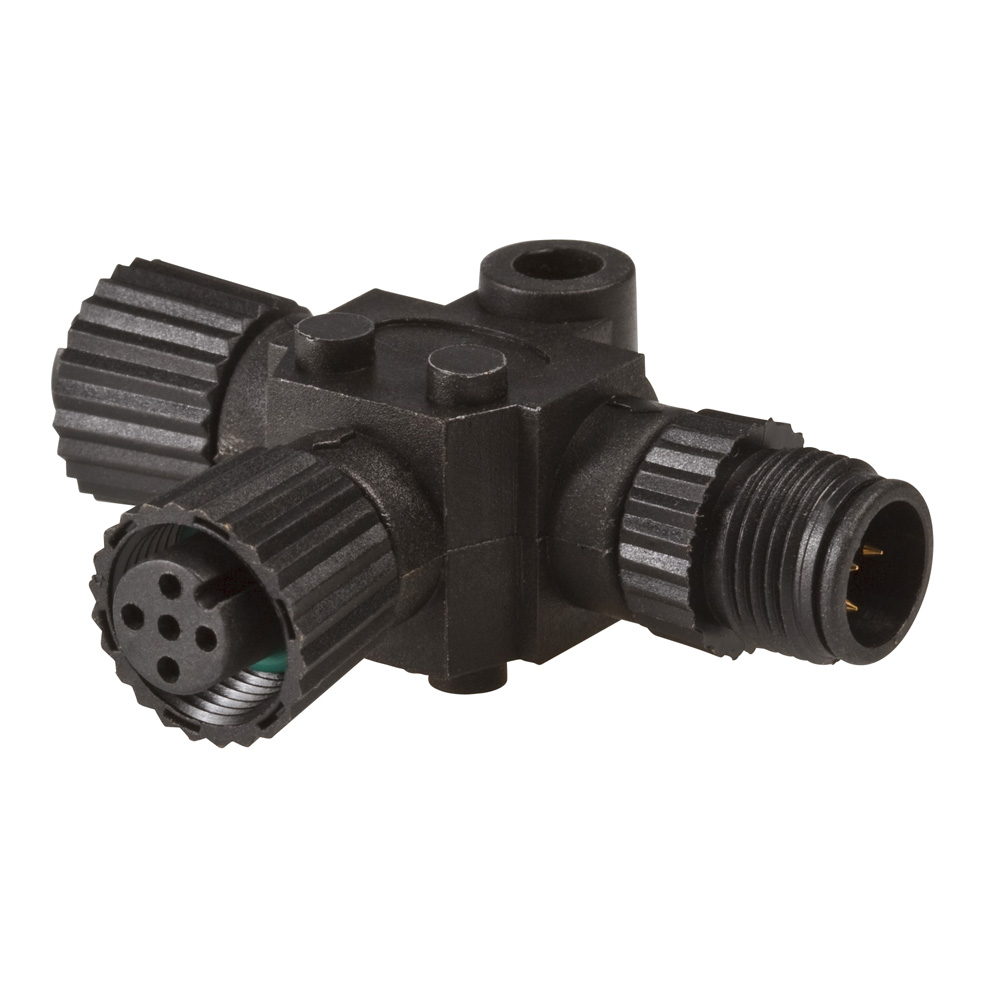

Lowrance T-Connector NMEA 2000
$24.20
Navico Fuel Data Manager
$120.99
Ask A Question

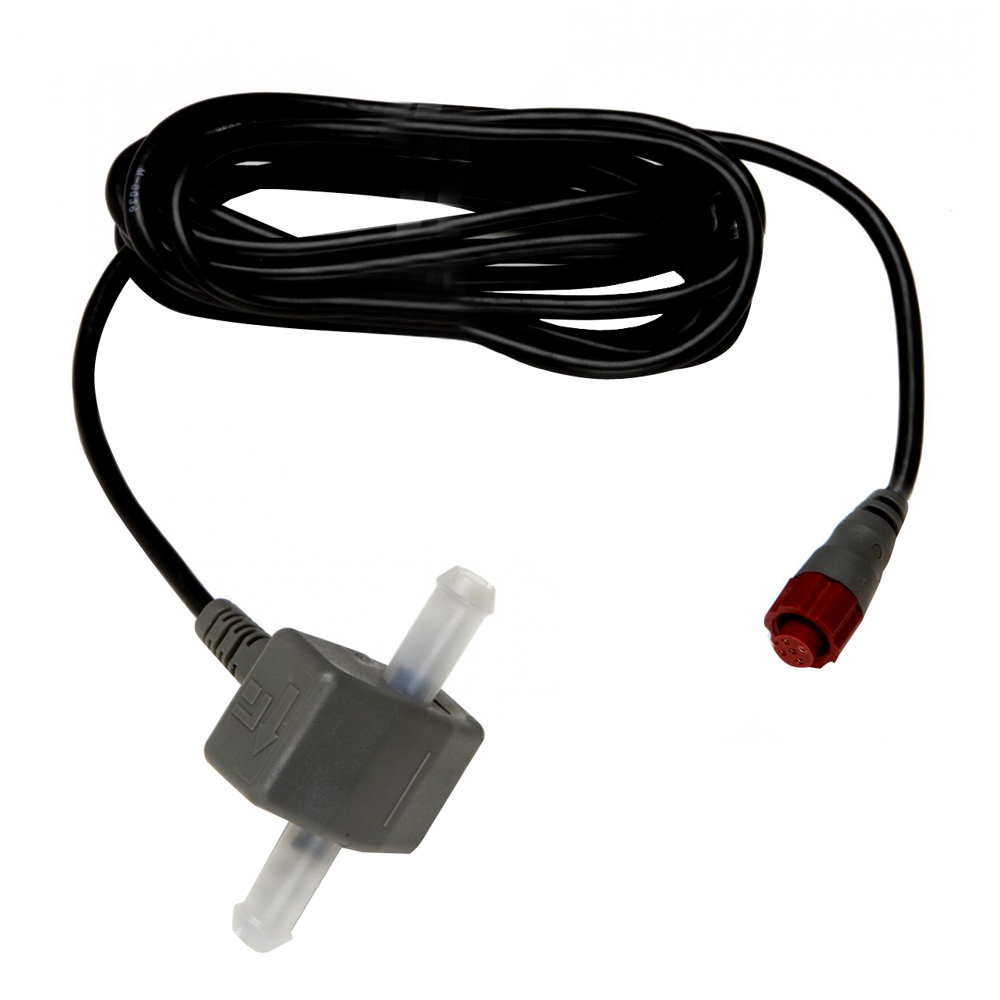

Lowrance Fuel Flow Sensor w/10' Cable & T-Connector

Fuel Flow Sensor with 10' cable & T-connector

Fuel Flow Sensor Gasoline ONLY. 1 required per engine. Up to 3 engines supported.

Outputs:

  • Fuel Flow
  • Tank Fuel Used
  • Trip Fuel Used
  • Seasonal Fuel Used


Cable Length: 10'
Fuel Line Diameter: 3/8" (9.5mm) Inside Diameter
Flow Rate Measured: Optimized for 0.6-45 Gal/hr but can measure outside these values
Added Back Pressure to the fuel system: 0.5 PSI at 20 Gal/hr; 1 PSI at 40 Gal/hr
Installation Location: Above the max level of the fuel tank, in-line after the fuel filter and any Y's or T's in the line
Package: The Fuel Flow Sensor, N2K T and 2 (two) 1" hose clamps
Fuel Type: Gasoline only. The Fuel Flow Sensor does not operate diesel engine fuel systems
Hole required to route through a bulkhead: 22mm (7/8")
Multiple Fule Flow sensors possible: Yes

Specifications:

  • Type: Misc
  • Box Dimensions: 2"H x 4"W x 10"L WT: 0.6 lbs
  • UPC: 9420024129852
