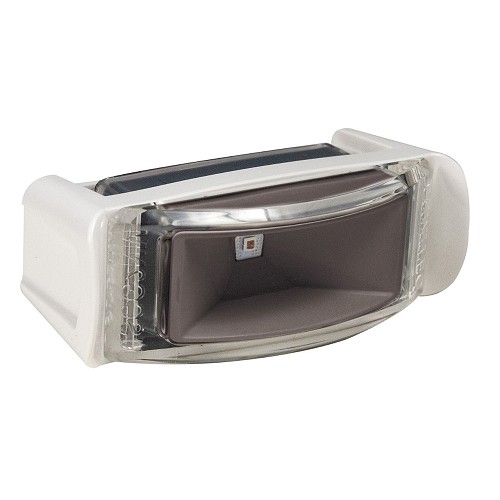

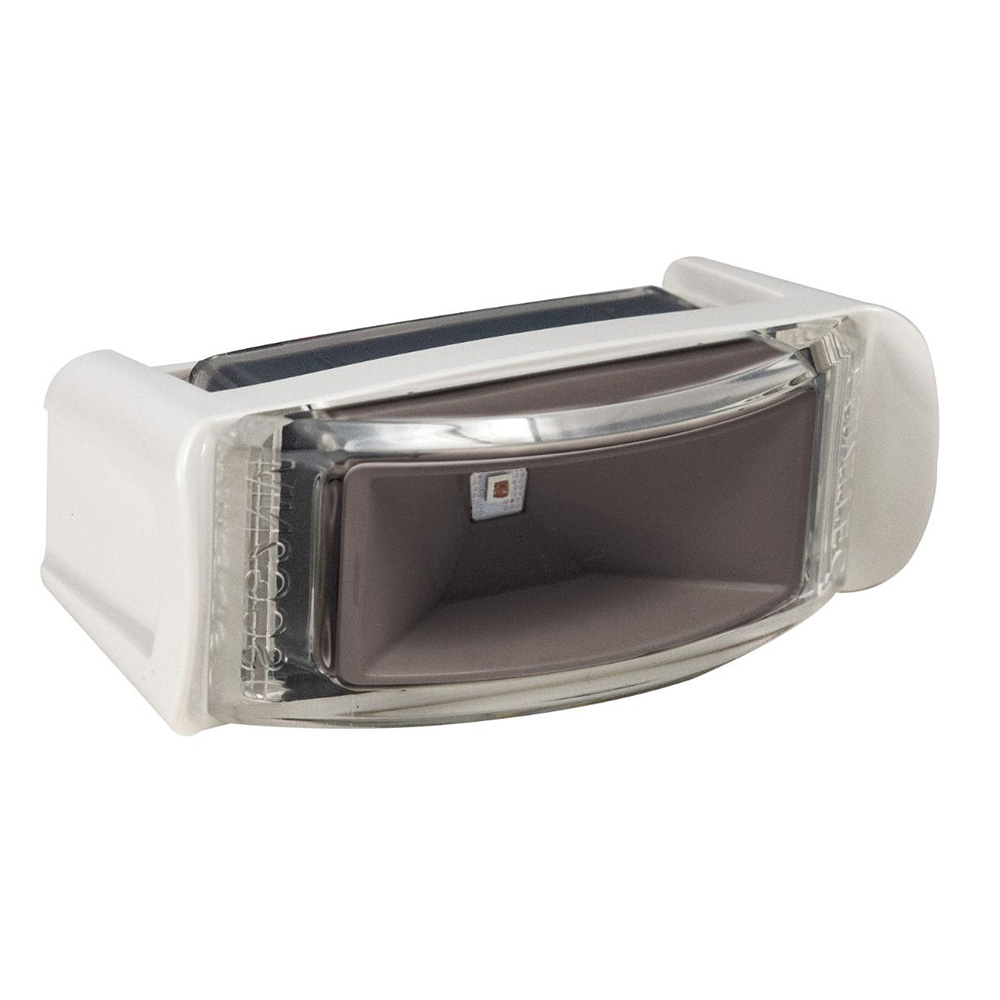

Lumitec Contour Inset Navigation Light - Port Red - White Housing

Contour Inset Navigation Light - Port Red - White Housing

Innovation meets utility in Lumitec’s new Contour line of navigation lights. When customers asked us for a navigation light solution, Lumitec was determined to do it better. We looked at design trends in marine, automotive, and consumer products. We studied how boats are assembled and rigged. We applied the latest technologies and our deep experience. The result is a line of navigation lights that allow for fast and easy integration into tops, arches, and pilothouses, providing an immaculate and seamless look. U.S. Coast Guard approved 2nm for vessels up to 50m/165 feet. USCG 3nm is also available. Contact your sales representative for CAD models of tooling inserts to facilitate the integration of Contour lights.

Specifications:

• Color Output: Port/Red - Inset
• Finish/Housing: White
• Voltage: 10-30 vDC
• 12v DC Amps: 67mA
• 24v DC Amps: 33mA
• Related Watts: 0.8W
• Op. Temp F/C: -31/35 to + 131/55
• Height: 1 in (2.54 cm)
• Width: 2.67 in (6.78 cm)
• Depth: 1.32 in (3.35 cm)
• IP Rating: 67
• PLI Enabled: No
• Timed Toggled Protocol (TTP): No
• Third Party Dimmer Compatibility (3PD): No
• Color Match Commitment (CM): No
• CE Certified: Yes
• UL Certified: No
• USCG Rated: 2 NM
