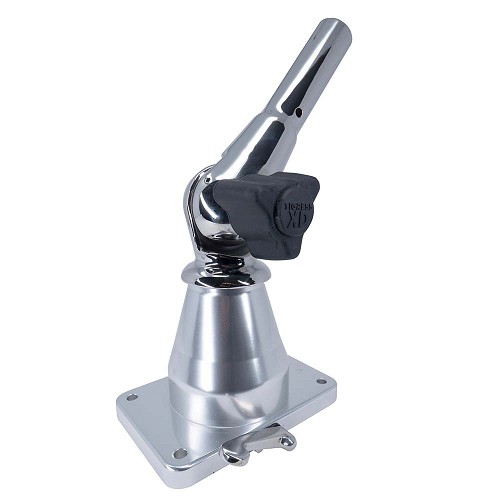

Tigress XD Bay Series Top Mount - Pair

XD Bay Series Top Mount - Pair

Features:

• For use on sport fishing boats up to 40 feet
• Accepts all Tigress XD 1-1/8” butt diameter Outriggers
• 19 upper-arm angle/locking (@10 deg.) using Tigress XD 316L Stainless Steel tooth locking design with horizontal stops for Trailering and bridges
• Large 3-lobe UV ergonomic knob for changing and locking the outriggers’ elevation
• 24 adjustable/locking system positions (15-degree increments) featuring Tigress XD 316L Stainless Steel locking design with HD Spring return
• User-friendly Side Operating Lever
• Large ‘XD’ Aluminum 14.5mm thick baseplate with four corner mounting
• 5/16” through x 3.000” x 5.000” 4-bolt pattern
• Fits Tigress and other industry-standard 4” x 6” mounting plates (four 5/16” diameter fasteners)
• Extreme-duty 316L Stainless Steel and anodized aluminum and fully sealed construction with UV protection
• Ambidextrous mounting option to accommodate the side that the tri-lobe knob is positioned on
• 3-Year Limited Warranty

*Two top mounts included
