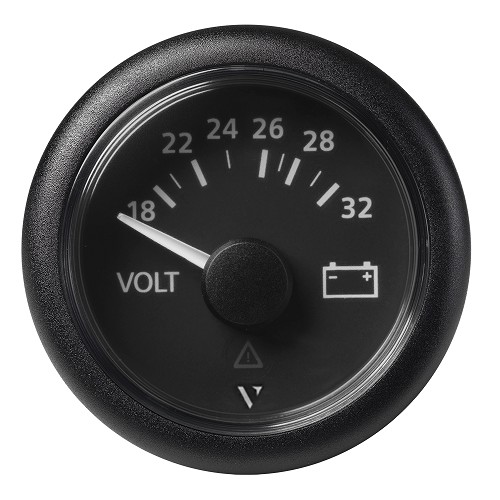

Veratron 52mm (2-1/16") Viewline Voltmeter 18-32V - Black Dial & Bezel

52mm (2-1/16") Viewline Voltmeter 18-32V - Black Dial & Bezel

The Viewline voltmeter displays the status of the generator and battery and their loads on a voltage scale. Values exceeding the normal charging voltages can therefore be monitored exactly.

Features:

• Installation Dimension: 52mm - 2-1/16"
• Color: Black
• Lens: Plastic Double Anti-Fog
• Bezel Model: Black Round
• Measurement Range: 18 - 32V DC
• Category: Voltmeters
• Series: Veratron Viewline
• Application: VDO Engine Monitoring
• Signal Analogue: 0 - 32V DC
• IP Class Front: IP67 (IEC 60529)
• Operating Voltage: 18 - 32 Volt DC
• Functionality: 24 Volt Battery Condition
• Input: Analog
• Bezel Interchangeable: Yes - Clip-On
• Warning Light: Red LED Via Plus And Min
• Communication: Analog

Specifications:

• Box Set: No
• Gauge Size: 2-1/16"
• Gauge Type: Voltmeter/Ammeter
• Series: ViewLine
• Voltage - Input Range (Volts): 18-32v
• Box Dimensions: 3"H x 4"W x 8"L WT: 1.5 lbs
• UPC: 7640178722811
